SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine

Brand Name : PRINTYOUNG

Model Number : SGJ-1050,1450

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1 Set

Price : US 85000~100000 Set

Payment Terms : T/T

Supply Ability : 20 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Weight : 7000 KG , 8000 KG

Warranty : 1 Year

Type : Coating Machine

Condition : New

Application : Commodity

Driven Type : Electric

Voltage : 380 V

Dimension : 11000 * 2260 * 2100 mm

Max. Sheet Size : 730 * 1040 mm , 1100 * 1450 mm

Min. Sheet Size : 310 * 410 mm

Max Varnishing Size : 720 * 1040 mm , 1100 * 1450 mm

Max Speed : 9000 sheet/hour

Sheet Thickness : 80 - 600 gsm

Spot UV Tolerance : +/- 0.2 mm

UV Coating Thickness : 0.15 mm - 0.6 mm

Total Power : 38 kw

Contact Now

SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
Automatic Spot UV Coating Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
Features
The spot uv coating machine is a new coating equipment with excellent performance,which integrates the advanced technologies at home and abroad.It can both local and overall coating,and has the advantages of high working speed,high gloss,thin and uniform coating layer.It is widely used in packaging decoration,book cover and other printing materials.
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing MachineSGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing MachineSGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing MachineSGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing MachineSGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing MachineSGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
Technical Parameters
Automatic Spot UV Coating Machine
Model
SGJ-1050
SGJ-1450
Max. Sheet Size
730 * 1040 mm
1100 * 1450 mm
Min. Sheet Size
310 * 410 mm
310 * 410 mm
Max Varnishing Size
720 * 1040 mm
1100 * 1450 mm
Speed
Up to 9000 sheet/hour
(Vary with the Material of Paper)
Up to 9000 sheet/hour
(Vary with the Material of Paper)
Sheet Thickness
80 - 600 gsm Depend on
Paper Size and Material
80 - 600 gsm Depend on
Paper Size and Material
Spot UV Tolerance
+/- 0.2 mm
+/- 0.2 mm
UV Coating Thickness
0.15 mm - 0.6 mm
0.15 mm - 0.6 mm
Total Power
38 kw
38 kw
Dimension
11000 * 2260 * 2100 mm
11000 * 2260 * 2100 mm
Weight
7000 kg
8000 kg
Configuration

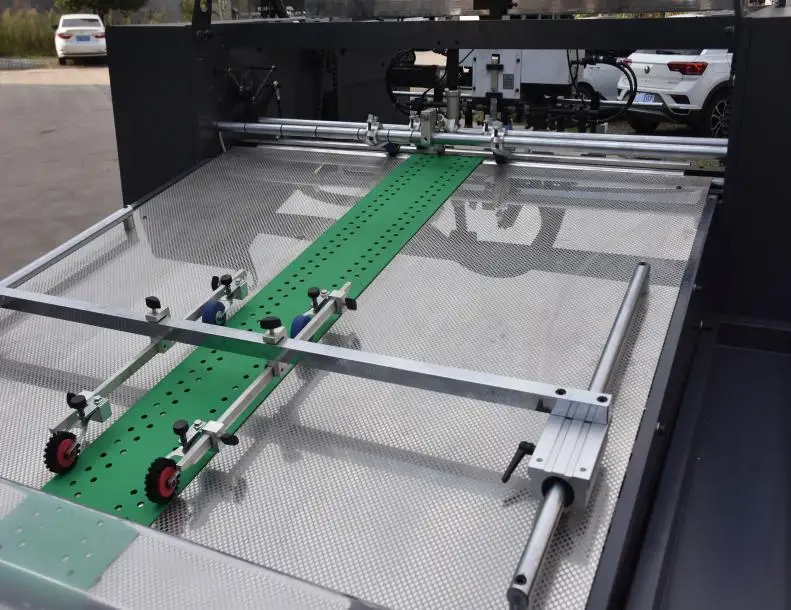

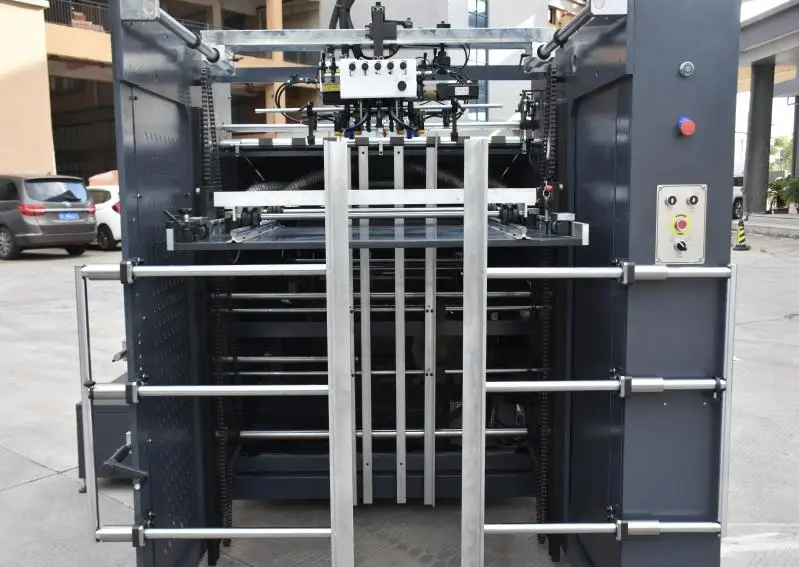

1.Automatic Paper Feeder
* High reliability is adopted for fast and smooth paper feeding.
* Equipped with sensitive electromechanical double-tension detector and foreign body baffle,the machine will stop immediately if abnormal.

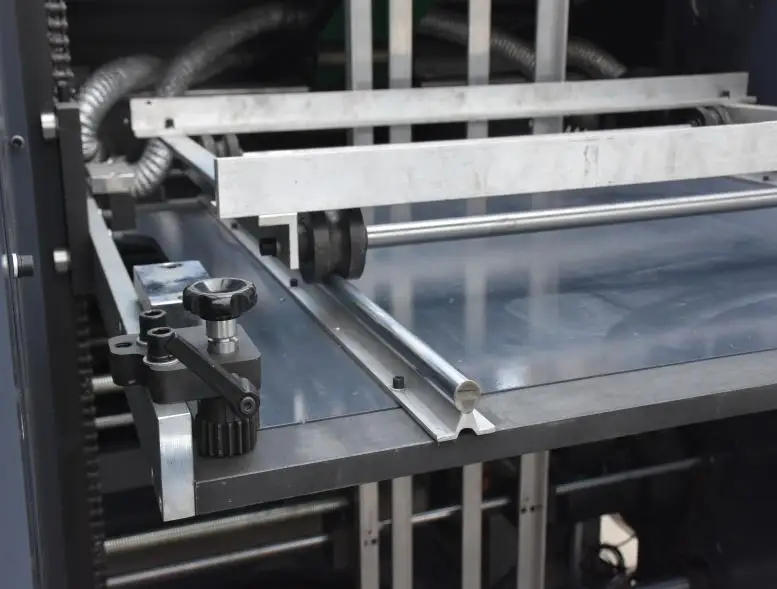

* Accurate and reliable front gauge and side gauge.

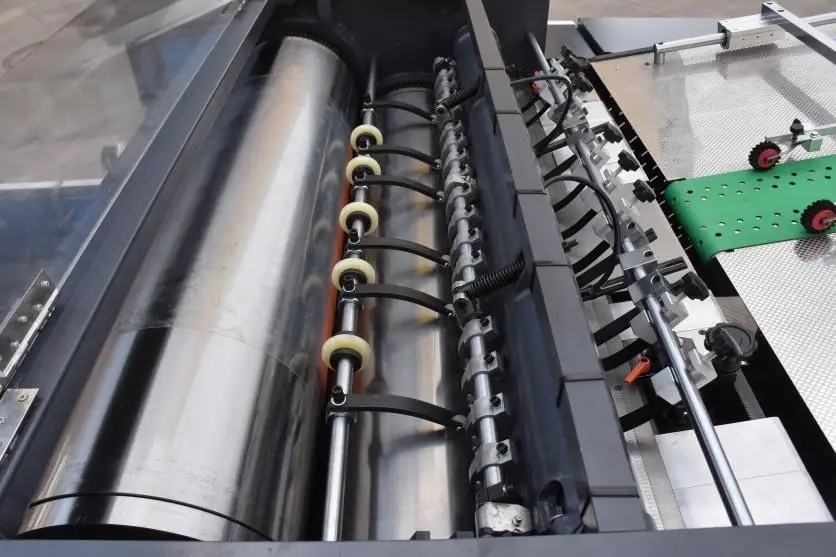

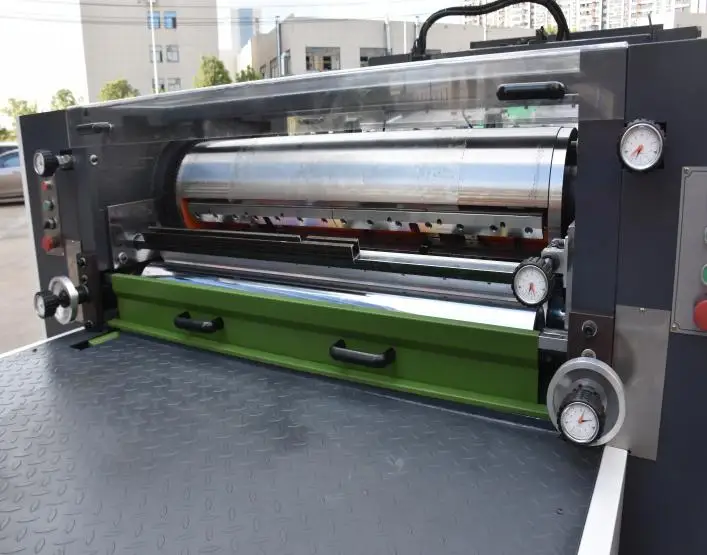

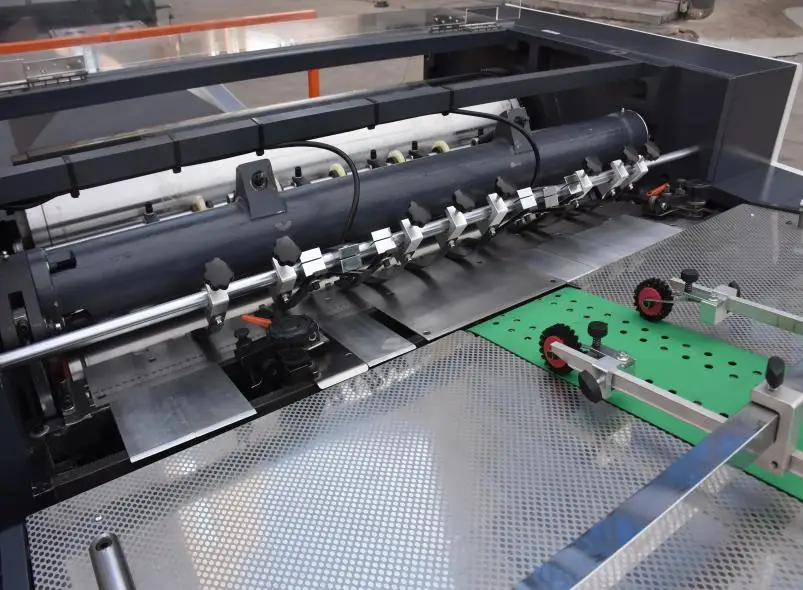

2.Coating Host
* Coating speed up to 6000-7500 sheets/hour.
* Using a large diameter imprint drum,drum by dynamic balance,coating oil film flat.Double shaft oil transfer, scraper,simple and reliable control of oil.
* Coating drum adopts screw fixed clamping device,which is simple and durable.
* Roller forward and backward oil transfer structure,easy conversion,flexible thickness adjustment.
* Optional ceramic anilox roller and cavity scraper or ordinary scraper.

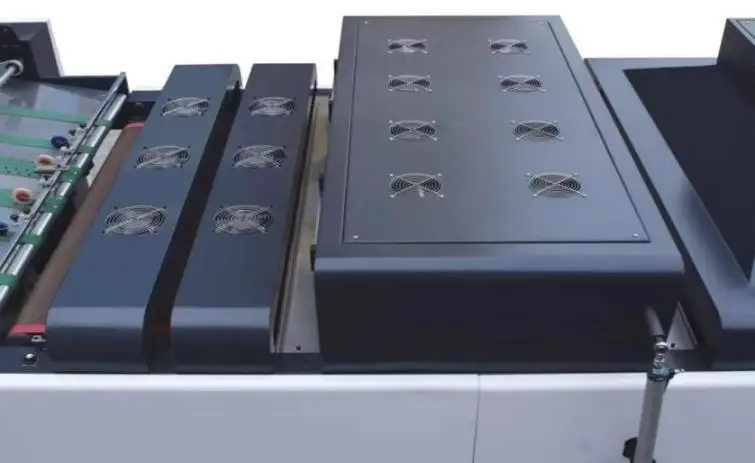

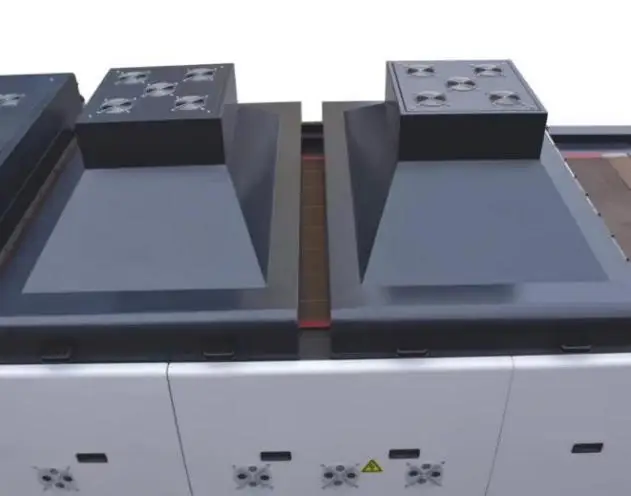

3.UV Drying Equipment(UV Dryer + IR Dryer)
* UV drying equipment adopts three UV mercury lamps,which can quickly solidify UV varnish.
* Equipped with full/half light conversion.
* Built-in automatic temperature control and electronic abnormal jumping.
* Water-based IR drying equipment,can dry water-based varnish.

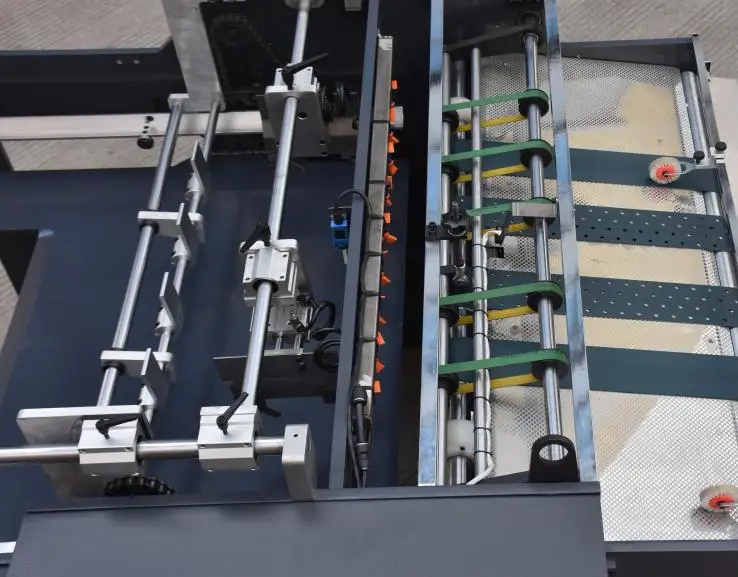

4.Automatic Paper Stacker
* The paper stacker is equipped with an automatic paper loading platform.
* Photoelectric pneumatic two-sided paper leveller and strong paper flat and slow;Intermediate device to prevent the release of thick paper inertia;Medium range to ensure smooth and neat paper receiving.
* Equipped with cooling fan and optional cooling air conditioning.
* Abnormal status indicator light and safety detection system to quickly inform the staff of abnormal status.
5.Automatic Control
* The motor USES frequency conversion speed regulation,safe and reliable.
* The whole machine USES PLC programmable control,simple operation,easy maintenance.
* All parts of the cable are connected by fast connector,easy to install.
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
SGJ-1050,1450 Fully Automatic High Speed Paper Spot UV Coating Glazing Machine
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
